China 22 Gauge Corrugated Galvanized Zinc Roof Sheets / Iron Steel Tin Roof / Galvanised Corrugated Roofing Sheet
China 22 Gauge Corrugated Galvanized Zinc Roof Sheets / Iron Steel Tin Roof / Galvanised Corrugated Roofing Sheet
Regular price
$560.00
Regular price
$650.00
Sale price
$560.00
Unit price
per
Shipping calculated at checkout.
***Please negotiate with the buyer to confirm the detailed specifications before placing an order, all styles can be customized
***The price is not the final transaction price
Get a Free Quote
PPGI Corrugated Sheets has been used extensively by the construction industry throughout the World for nearly two centuries.Because of its excellent corrosion resistances, it has become the preferred material for a wide range of construction uses,particularly roofing and walling.
PPGI Corrugated Sheets is a unique building material. It combines the strength of steel with the excellent corrosion protection of zinc/aluminum alloy coatings. It can be punched, roll-formed and joined in to a limitless number of structural and decorative building products.
|
Product name
|

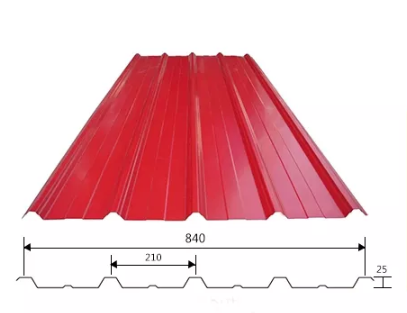

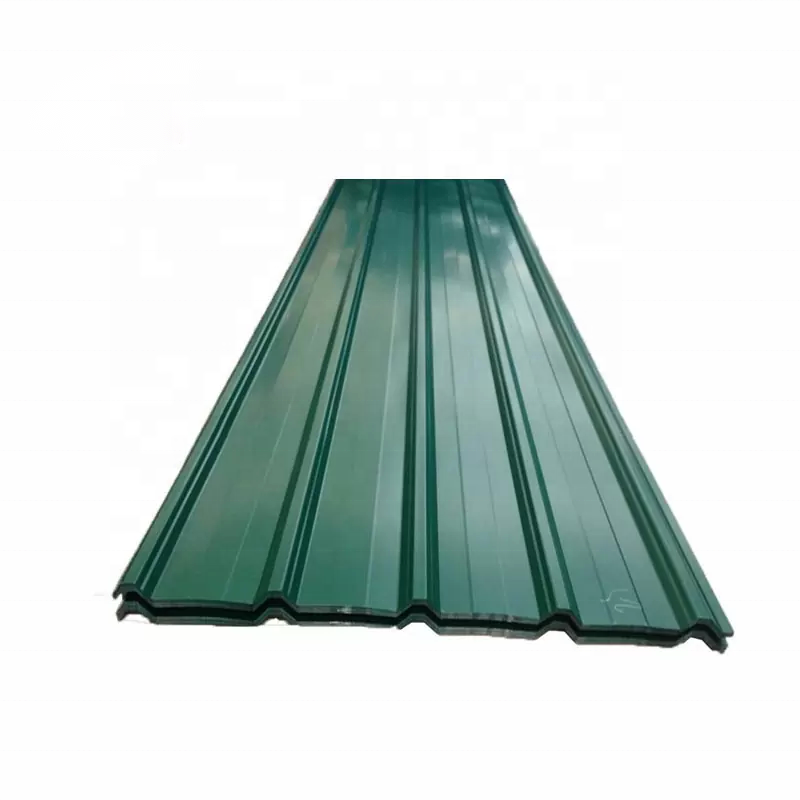

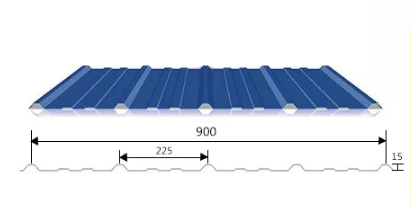

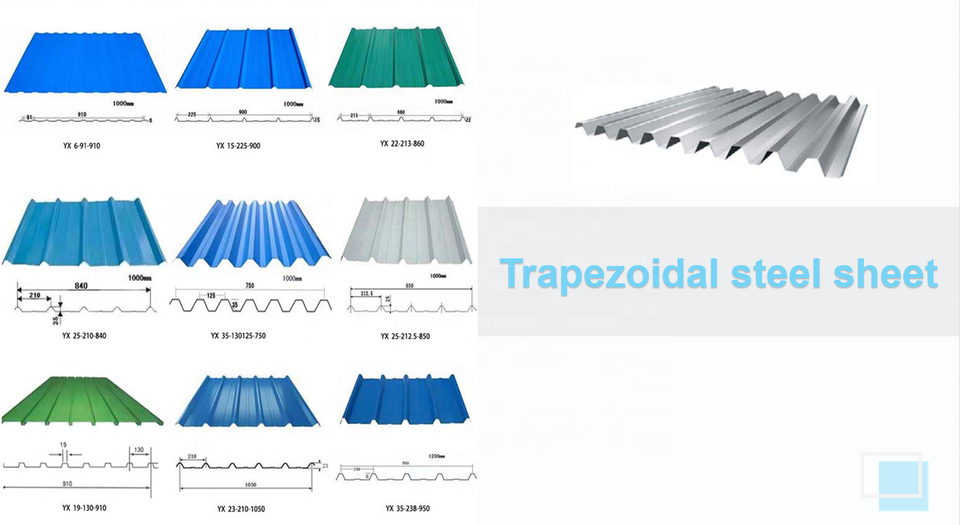

Trapezoid Shape Corrugated Steel Roofing Sheet
|
|
Thickness
|
0.15—2.0mm
|
|
Width
|
before corrugation:1000mm; after corrugation:915、910、905、900、880、875
|
|
before corrugation:914mm; after corrugation:815、810、790、780
|
|
|
before corrugation:762mm; after corrugation:680、670、660、655、650
|
|
|
Length
|
1.8m to 12m and support cutting
|
|
Material
|
SGCC,SGCH,G550,DX51D,DX52D,DX53D
|
|
Zinc Coating
|
Z30 - 275g/m2,AZ30- 150g/m2
|
|
Painting Coat Style
|
2/1, 2/2
|
|
Paint Coating Thickness Range
|
Front Coating: primer+topcoat: 10um to 40um;
Back/Bottom Coating: 3um to 10um. |
|
Topcoat Types
|
Polyester (PE), Silicone Polyester (SMP), High Durable Polyester (HDP), Fluoropolymer (PVDF)
|
|
Top Paint
|
8-35 Micron
|
|
HRB
|
Soft Hard (<60),Medium Hard (60-85), Full Hard (85-95)
|
|
Surface Treatment
|
Flat Surface, Matt, Embossed
|
|
Spangle
|
Regular spangle,Minimum spangle, Zero spangle, Big spangle
|
|
Color
|
Top side is made according to RAL color, Back side is white grey in normal
|
|
Standard Seaworthy Export Packing
|
Dust-proof kraft sheet, Iron packing, Angle protective ,Packing belt
|

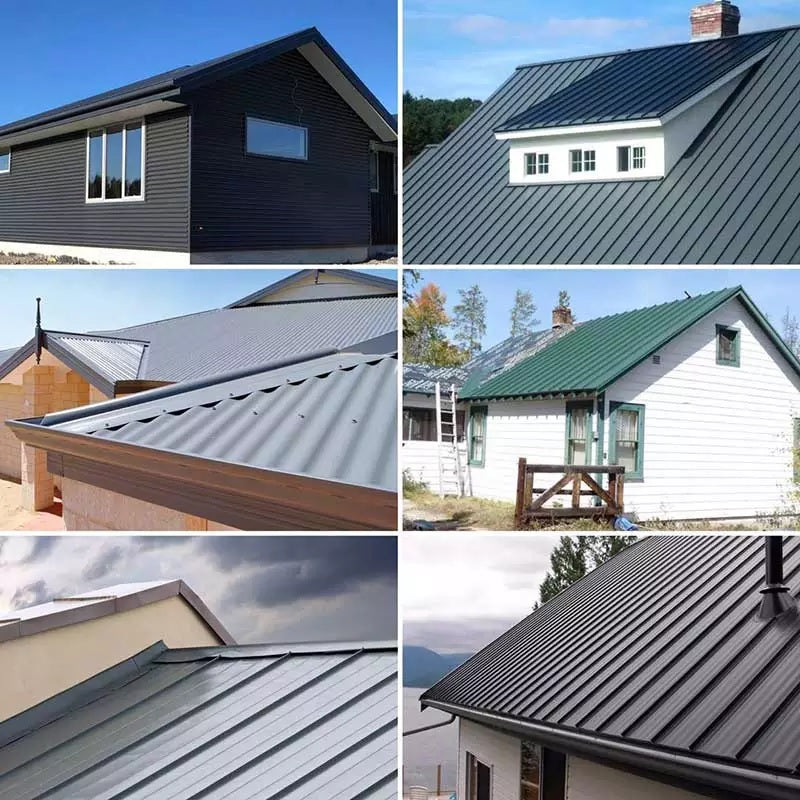

Corrugated Steel Sheet are widely used in* Construction: prefabricated house, steel house, mobile house, modular house, villa, bungalow design, portable house, ready made,house, kiosk booths, steel building…
* Container manufacturing.
* Household Appliances and furniture.
* Vehicle and vessel manufacturing.
* Others, like machinery structure parts, manufacturing shells of motors…
